High efficiency 220v led strip

High efficiency 220v led strip Introduction of High efficiency 220v led strip

Model:GY-HV-2835-240D-IP67 (220V/110V)
Voltage:AC220V-230V (AC110V-127V customized)
Packing:50m/roll/carton (L34*W34*H12cm) (6.5kg/carton)
Accessories:AC Power plug, PIN, end caps, clip, etc

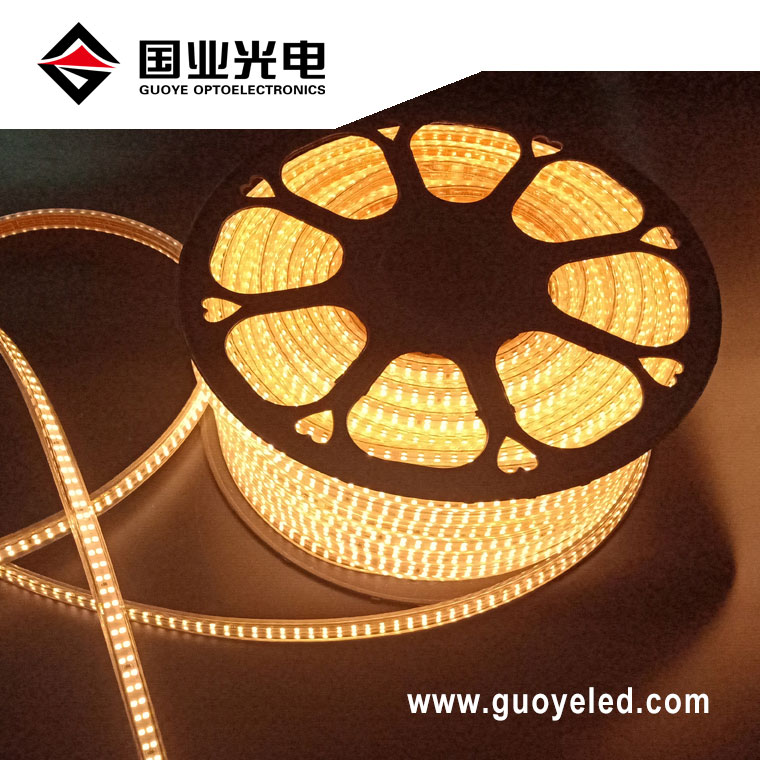

This is a high voltage 220v led strip light with high light efficiency. It is directly driven by household voltage 220V-240V or 110V-127V. It is equipped with current stabilizer power cord, and the power cord is connected with LED light, which can be light up directly to achieve lighting effect. Led strip light adopts the highlight 2835SMD led, the SMD light flux can reach 24-26LM, The circuit design power is about 10W per meter, and the luminous flux per meter can reach 1000LM. Lamp body is using UV resistant, flame retardant PVC material, extrusion molding process. The product has a high level of consistency, products through CE ROHS certification. Welcome to consult the latest specifications, welcome to buy from us.

High efficiency 220v led strip Parameter

LED type	2835 SMD	Power	10W/M
Voltage	AC110V / AC220V	Cri	80+ or 90+
LED Density	240pcs/M	Certificate	CE ROHS
Lumen (m)	1000lm	Warranty	2 YEARS
PCB Type	White PCB ,	Pack	50M/R
Cut unit	110V 0.5M / 220V 1.0M	IP Rank	IP67
Color	3000K 4000K 6000K

Connection methods

Accessories options

High efficiency 220v led strip attention

1. When led light is in a roll, do not light the light for a long.
2. When connecting the power cord to the led strip, pay attention to the sealing of the light.
3. Do not twist the led light continuously to prevent damage to the internal components.
4. The product is driven by high voltage and should be installed within a safe range. It can’t be using under water
5, the led light can reach IP67 waterproof grade, can be used outdoors, but do not used underwater.
