1.Product Introduction of led flexible neon light
Led flexible neon light 10*22*13mm is side view emitting neon light with round top luminous, Larger luminous area and luminous Angle make the light more softer. Outdoor waterproof IP67, flame retardant, yellowing resistance, a variety of color light optional for the living room, bookcase, gym, Stairs and so on. Welcome to contact us for the latest product specifications and long-term cooperation in future..
· Bend direction: Side bending - Side view Emitting

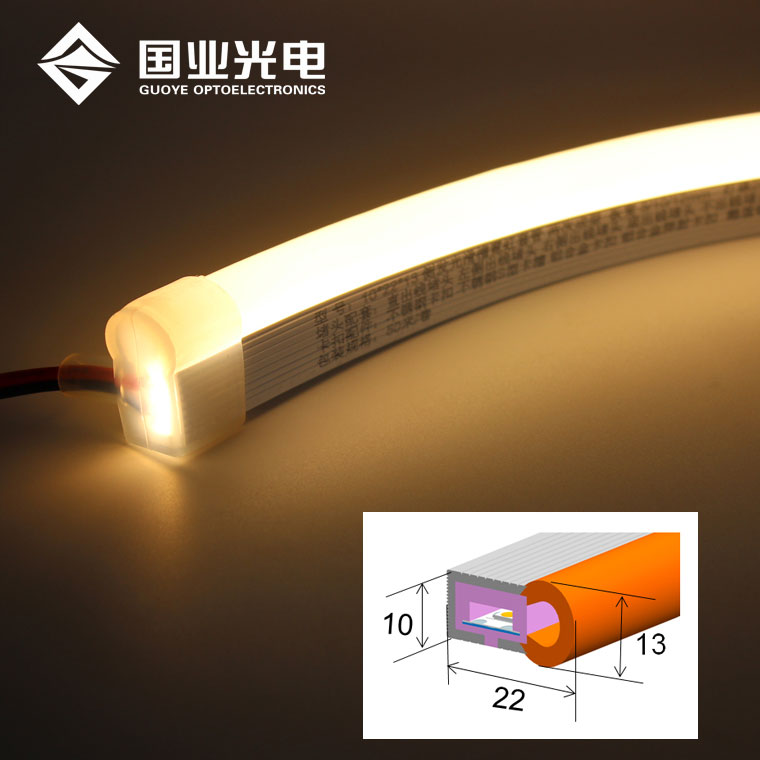

· Section size: 10*22*13mm (Round top)
· Packing: 1m - 5m - 10m / 50m / 100m roll
· 10Watt/meter, IP67, 3 years warranty
2.Product model
Name: NF-1022-LED NEON FLEX (12V 24V)
SPEC NO. :
-
GY
①
-
-
NF
②
-
-
24V
③
-
-
1022
④
-
-
30K
⑤
-
-
80
⑥
-
-
IP67
⑦
-
-
①: GY-GUOYE
⑤: Color Options
-
②: NF-Neon Flex
⑥: CRI Options
-
③: Voltage Option
⑦: IP Rank Options
-
④: Size Options
3.Product Parameter
|
Product name
|
LED Neon Strip light
|
Power
|
15W/M
|
|
Voltage
|
DC12V 24V
|
Cri
|
80+ or 90+
|
|
NEON Size
|
W 10mm * H 22mm
|
Certificate
|
CE ROHS
|
|
Lumen (m)
|
2000lm
|
Warranty
|
3 YEARS
|
|
Emitting
|
Side view emitting
|
Pack
|
5M/R or others
|
|
Cut unit
|
2.5cm/12V 5cm/24V
|
IP Rank
|
IP67
|
|
Color
|
1500K 2000K 2500K 2700K 3000K 4000K 4500K 6000K Red, Green, Blue, Pink, Orange, Ice blue, RGB RGBW and so on ..
|
4.Product Feature and Application
1, Adopt food grade silicone rubber, integrated silicone extrusion molding Production.
2, High lumen light source led strip light, uniform soft lighting without shadow.

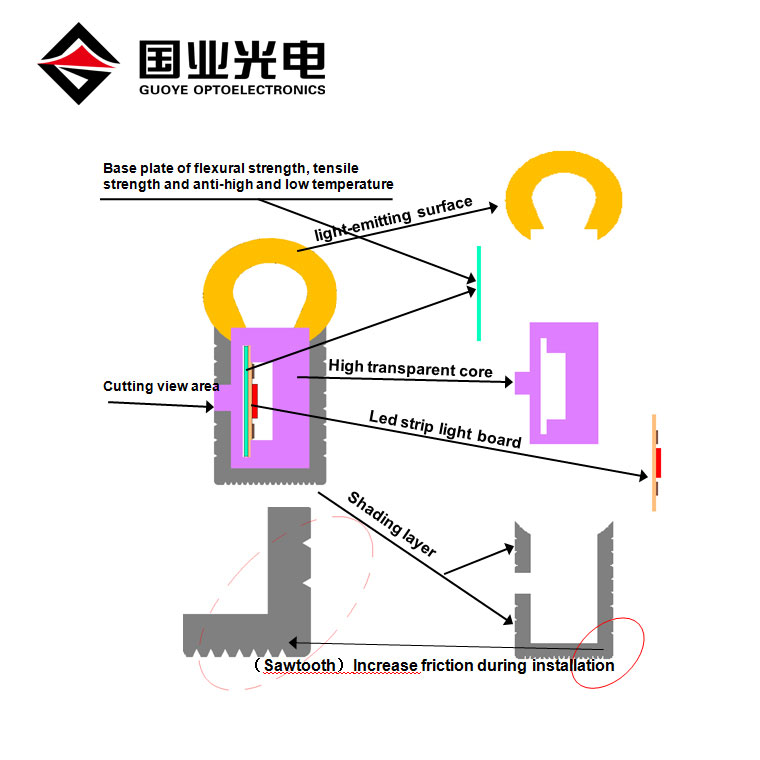

3, Break-proof PVC support base plate inside, effective protection of LED.

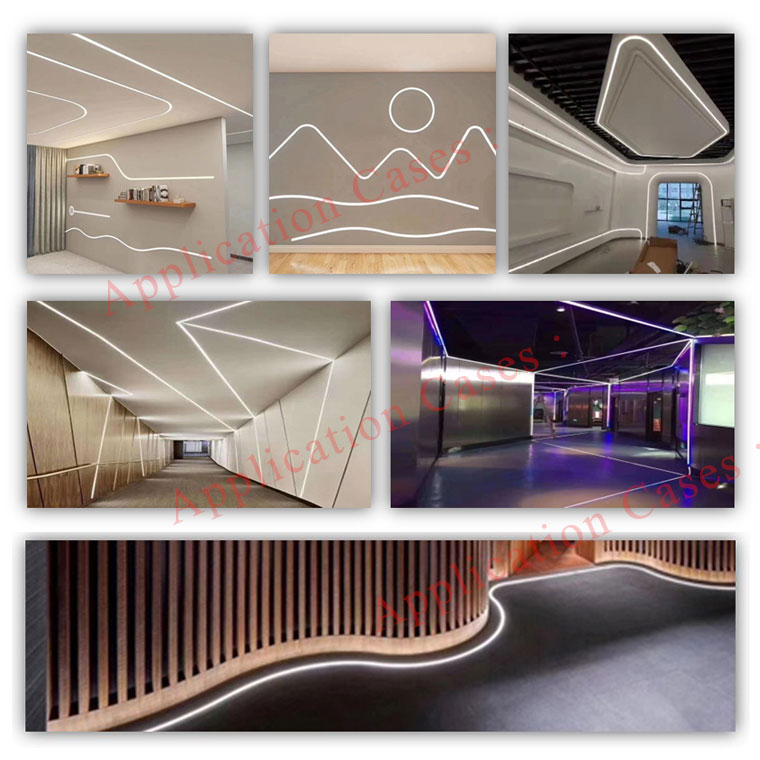

4, Featured in IP67, suitable for interior outline and auxiliary lighting.
5, Easy to cut to different length and soldering with cable or cover with end cap.
6, Life span ≥ 50000 hrs, 3-year indoor and 2-year outdoor warranty.
7, Color Options :
Single Color : Warm white 2000K 2400K 2700K 3000K Nature White 4000K 4500K Pure White 6000K 6500K
Other Option : Red , Green , Blue , Yellow , Orange . Pink .. Double color : RGB RGBW RGB+CCT
8, Bend direction and Light Emitting
Top view emitting, can be up and down bending
Side View emitting, can be bending by right and left.
9, Cut and Connect and install.
Here are Cut point on back of neon strip it is easy to see and it can be cut from the point .we can offer end cap and cable , to solder led strip to different length , and to power for work.
we also have different install fitting to choose , pls check here for more information , pls contact us ..
