Neon Flex Led Rgb
  • Neon Flex Led RgbNeon Flex Led Rgb
  • Neon Flex Led RgbNeon Flex Led Rgb
  • Neon Flex Led RgbNeon Flex Led Rgb
  • Neon Flex Led RgbNeon Flex Led Rgb
  • Neon Flex Led RgbNeon Flex Led Rgb

Neon Flex Led Rgb

Guoye Optoelectronics is professional neon flex led rgb light manufacturer and factory. This is a very popular 15*15mm LED RGB neon strip flex. Use of food grade silica gel makes the neon very high grade. Welcome to contact us for latest product specifications.
a)Bend direction: Top bending - Top view Emitting
b)Section size: 15*15mm (Flat top)
c)Packing: 1m - 5m - 10m / 50m / 100m roll

Send Inquiry

Product Description


1.Product Introduction of neon flex led rgb

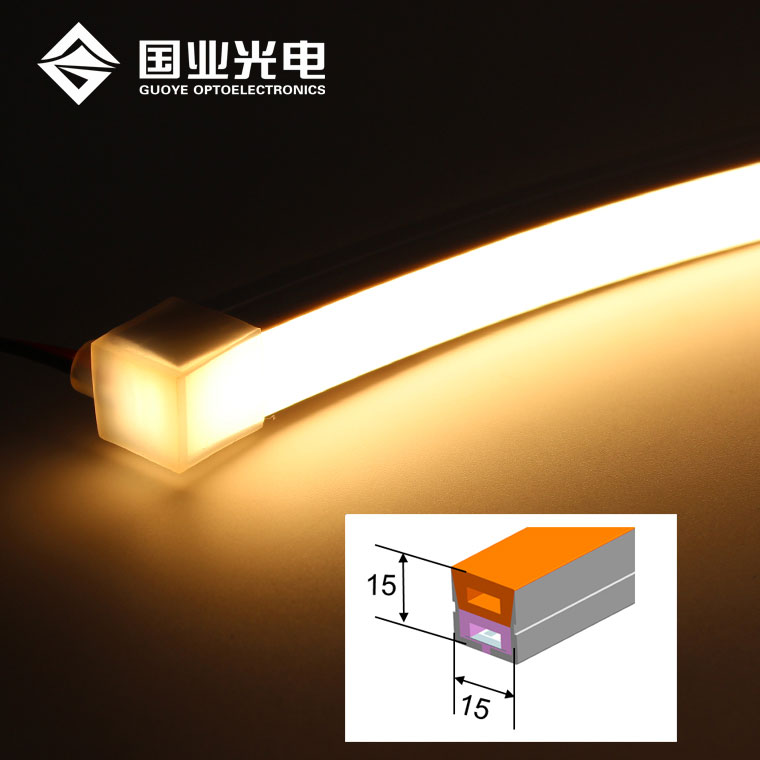

Size 15*15mm Neon flex led rgb color is flat top light view emitting. Color offer with warm white 3000K nature 4000K pure 6000K and other single color RGB RGBW color also, Waterproof IP67 can be use in outdoor, power 15W per meter, Soft body can be up or down bending to arc-shaped, wave-shaped, Corner. Can be make to 100meter roll. Welcome to contact us for the latest product specifications and long-term cooperation in future.
· Bend direction: Top bending - Top view Emitting
· Section size: 15*15mm (Flat top)
· Packing: 1m - 5m - 10m / 50m / 100m roll
· 10Watt/meter, IP67, 3 years warranty



2.Product model

Name: NF-1515-LED NEON FLEX (12V 24V)


SPEC NO. :
  • GY
  • -
  • NF
  • -
  • 24V
  • -
  • 1515
  • -
  • 30K
  • -
  • 80
  • -
  • IP67
  • -
  • ①: GY-GUOYE
    ⑤: Color Options
  • ②: NF-Neon Flex
    ⑥: CRI Options
  • ③: Voltage Option
    ⑦: IP Rank Options
  • ④: Size Options




3.Product Parameter


Product name LED Neon Strip light Power 10W/M
Voltage DC12V 24V Cri 80+ or 90+
NEON Size W 15mm * H 15mm Certificate CE ROHS
Lumen (m) 2000lm Warranty 3 YEARS
Emitting Top view emitting Pack 5M/R or others
Cut unit 2.5cm/12V 5cm/24V IP Rank IP67
Color 1500K 2000K 2500K 2700K 3000K 4000K 4500K 6000K Red, Green, Blue, Pink, Orange, Ice blue, RGB and so on ..


4.Product Feature and Application

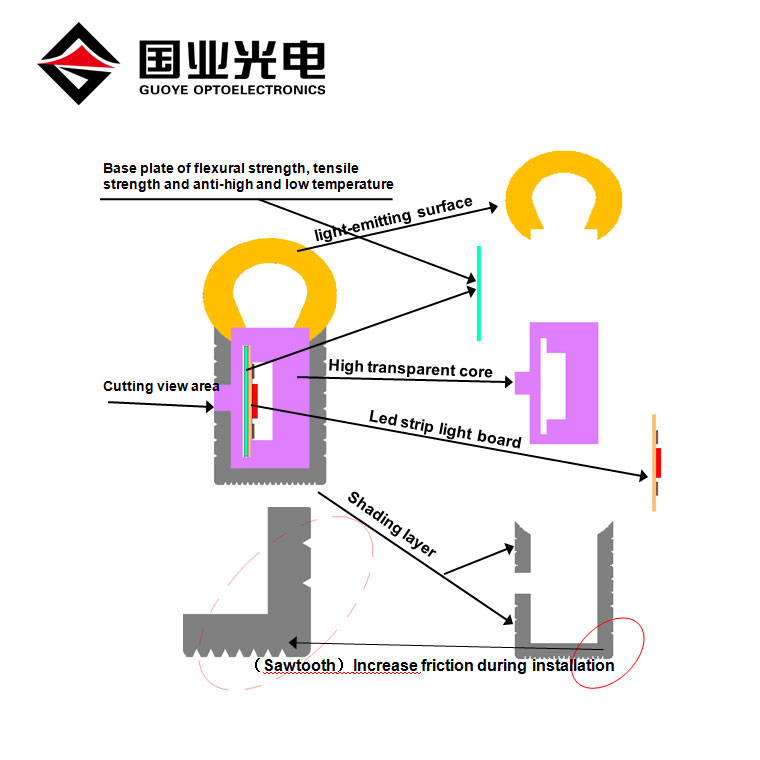

1, Adopt food grade silicone rubber, integrated silicone extrusion molding Production.
2, High lumen light source led strip light, uniform soft lighting without shadow.
3, Break-proof PVC support base plate inside, effective protection of LED.

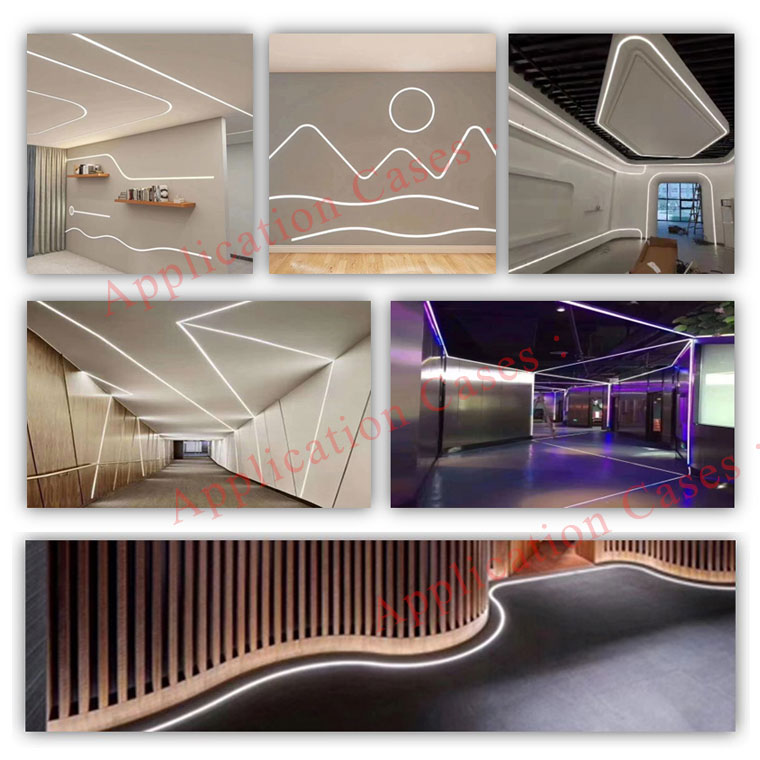

4, Featured in IP67, suitable for interior outline and auxiliary lighting.
5, Easy to cut to different length and soldering with cable or cover with end cap.
6, Life span ≥ 50000 hrs, 3-year indoor and 2-year outdoor warranty.
7, Color Options :
Single Color : Warm white 2000K 2400K 2700K 3000K Nature White 4000K 4500K Pure White 6000K 6500K

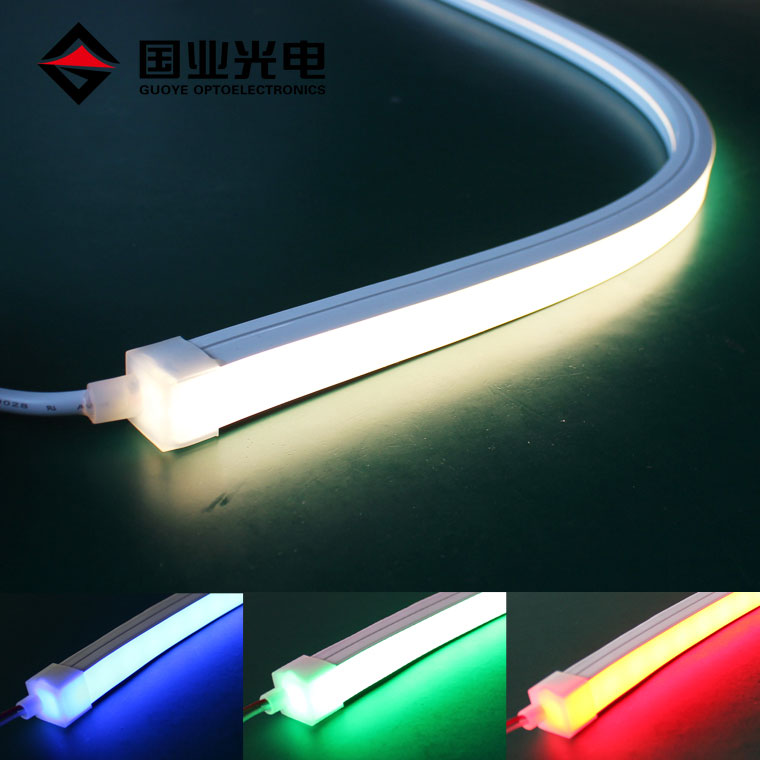

Other Option : Red , Green , Blue , Yellow , Orange . Pink .. Double color : RGB RGBW RGB+CCT



8, Bend direction and Light Emitting
Top view emitting, can be up and down bending
Side View emitting, can be bending by right and left.




9, Cut and Connect and install.
Here are Cut point on back of neon strip it is easy to see and it can be cut from the point .we can offer end cap and cable , to solder led strip to different length , and to power for work.
we also have different install fitting to choose , pls check here for more information , pls contact us..







Hot Tags: Neon Flex Led Rgb, China, Suppliers, Factory, Manufacturers, Wholesale, Customized, Price, Pricelist, Fashion, 2 years warranty
