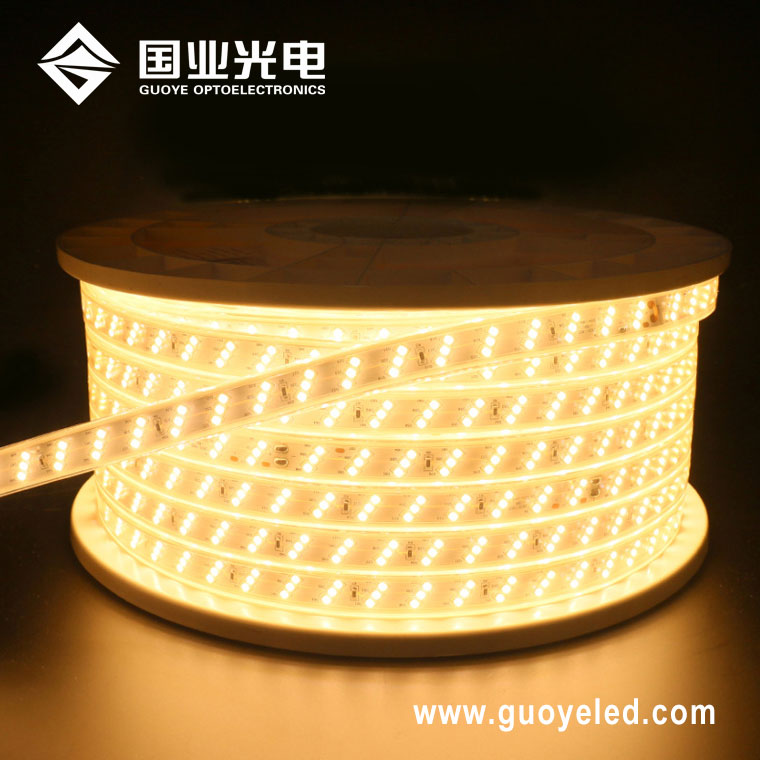

220v dimmable led strip lights

Product Introduction of 220v dimmable led strip lights

Model:GY-HV-2835-180D-IP67 (220V/110V)
Voltage:AC220V-230V (AC110V-127V customized)
Packing:50m/roll/carton (L34*W34*H12cm) (7.8kg/carton)
Accessories:AC Power plug, PIN, end caps, clip, etc

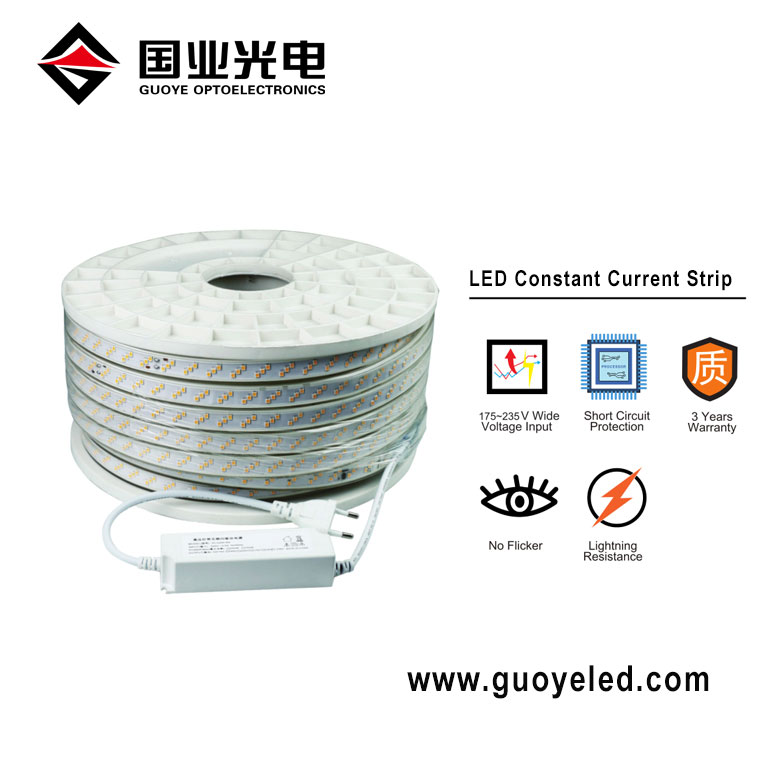

High voltage input LED constant current 220v dimmable strip light, it is configured in the design of constant current IC chip, in order to achieve the stability of the light work. It has two-color lamp body, transparent PVC luminous surface and milky white back, it looks beautiful atmosphere, high luminous efficiency. The strip is soft and resistant to bending, pure color, clear vision, healthy and environmental protection, lighting can reach 5000 hours under normal circumstances, integrated molding process, can be customized 50-100 meters a roll, the lamp body size is 17 wide *7 high (mm), protection level is IP67, can be customized light colors are warm white light, natural white light, positive white light, red light, blue light, green light and so on. 2 years warranty, products through CE ROHS certification. Welcome to inquire about the latest specifications.

Product Parameter

LED type	2835 SMD	Power	10W/M
Voltage	AC110V / AC220V	Cri	80+ or 90+
LED Density	180pcs/M	Certificate	CE ROHS
Lumen (m)	1000lm	Warranty	2 YEARS
PCB Type	White PCB ,	Pack	50M/R
Cut unit	110V 0.5M / 220V 1.0M	IP Rank	IP67
Color	3000K 4000K 6000K

Connection methods

Accessories options

Product attention

1. When led light is in a roll, do not light the light for a long.
2. When connecting the power cord to the led strip, pay attention to the sealing of the light.
3. Do not twist the led light continuously to prevent damage to the internal components.
4. The product is driven by high voltage and should be installed within a safe range. It can’t be using under water

5, the led light can reach IP67 waterproof grade, can be used outdoors, but do not used underwater.
