Individually addressable led strip

Guoye Optoelectronics is a company that produces and sells individually addressable led strip light in Shenzhen China. Addressable LED light strip, which is integrated with unique IC smart chip light strip, It allows you to control a single LED light source to achieve different light color effects. Individual addressable LED strips are also call as digital LED strip, pixel LED strips, Magic LED strips or dream color LED strips.

Model:GY-FS-5050-96D-SK6812/WS2812B-RGB (5V)

Send Inquiry

Product Description


Product Introduction of individually addressable led strip

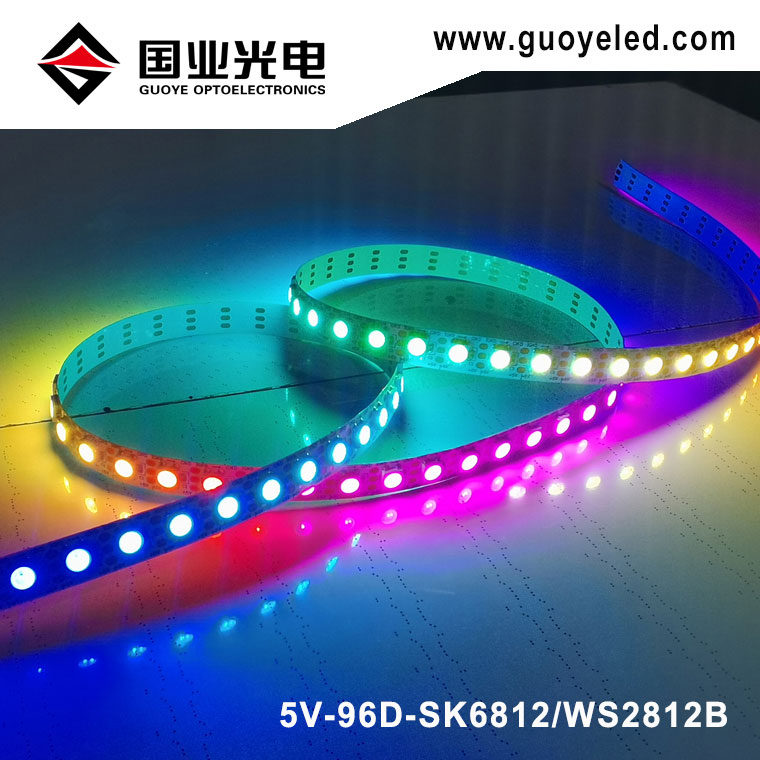

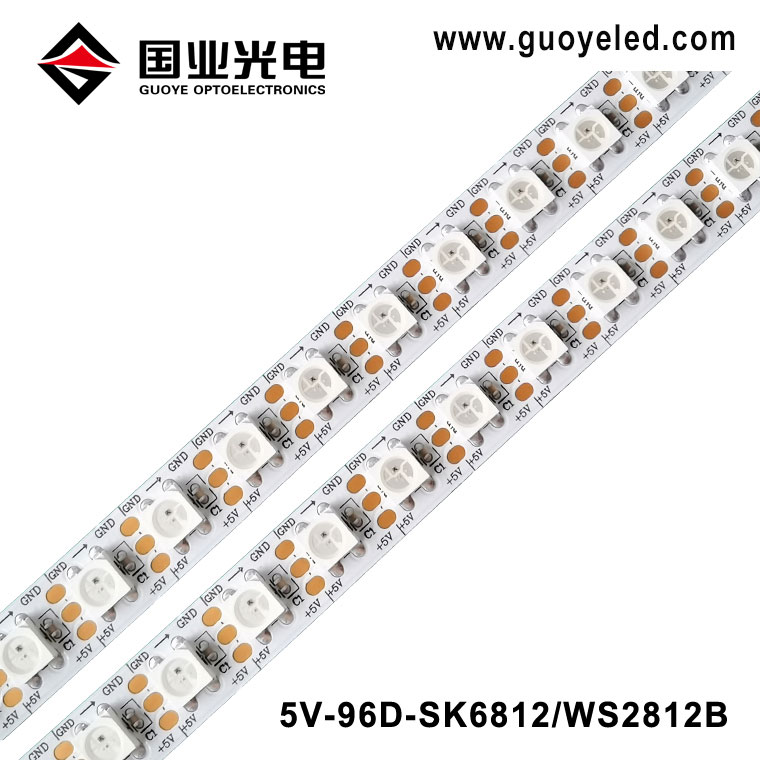

This individually addressable led strip light is 5V safe voltage driven, Built-in with SK6812 or WS2812B intelligent IC chip, In order to achieve a more intense light color effect, it is designed for 96 leds light sources per meter. It gives you more options and better lighting effects such as running chases, flowing fades, meteor trails, and more. You can even design your lighting with the control system.



Product Parameter


LED type 5050 RGB 0.2W Power 14.4W/M
Voltage DC5V IC Type Ws2812 / sk6812
LED Density 96pcs/M Certificate CE ROHS
Lumen (m)   Warranty 3 YEARS
PCB Type 10 mm, 2oz, White PCB , Pack 5M/R or others
Cut unit 1 led / cut IP Rank IP30 IP65 IP67 IP68
Color RGB




Waterproof grade and use environment


We offer different waterproof grades to choose from according to different using environment.
IP20:NON-Waterproof (indoor use, dry places)
IP65:Cover with PU / silicon glue (indoor use, Resistance to moisture and dust)
IP67:Cover with Silicone tube ( indoor or outdoor use, Resistance to moisture and dust)
IP68:Cover with Silicon tube and put silicon glue inside tube, (outdoor use, it is ok to put into underwater or Rainy Places)



Connection method



Products attention

1, Do not long time light up when rolling on reel.
2, Do not overload lighting
3, Do not short circuit lighting
4, Do not plug to home 110V/220V Power
5, Do not put into water when it is not waterproof
