Rgbw addressable led strip

Product Introduction of RGBW addressable led strip

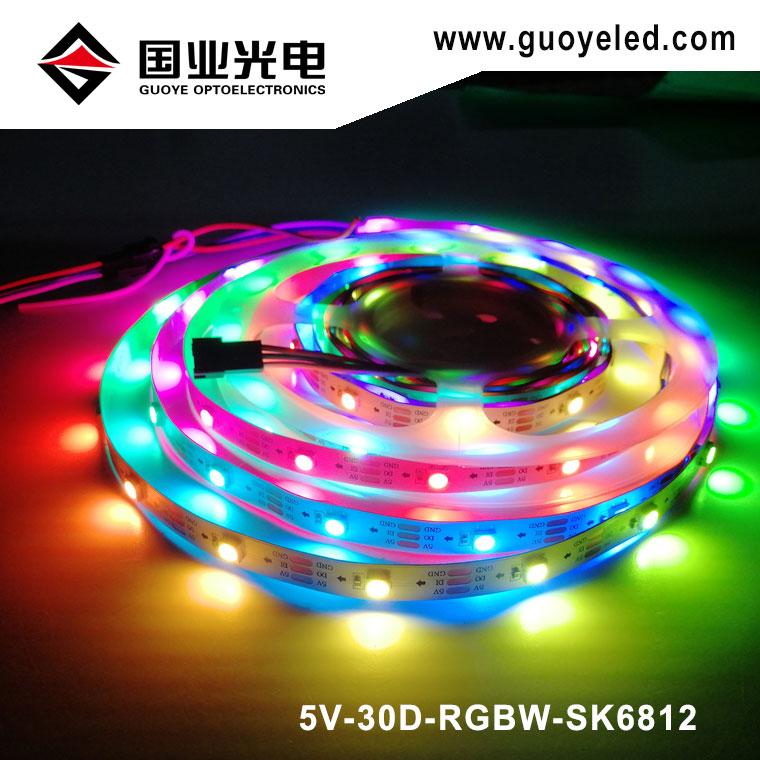

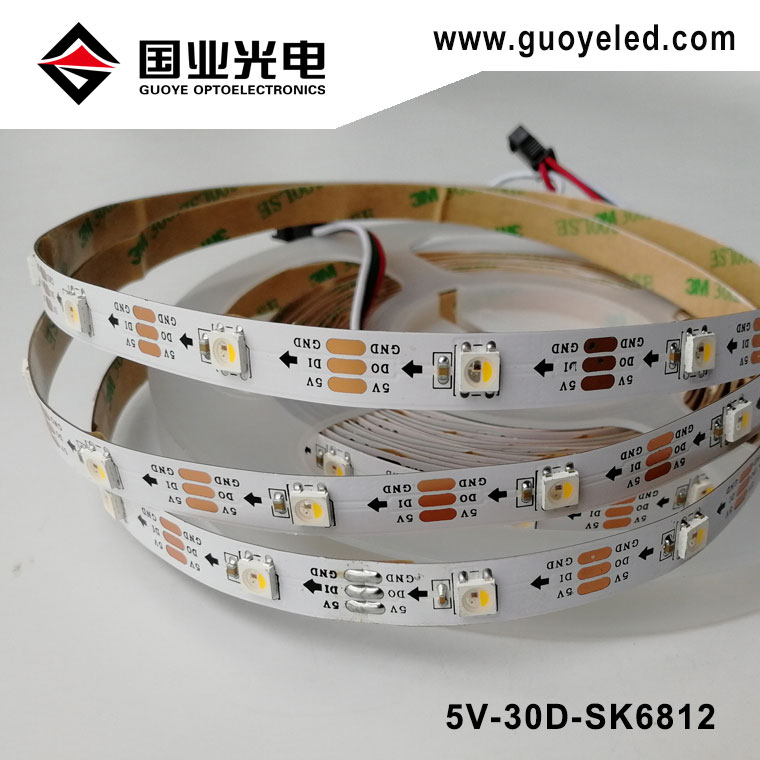

RGBW addressable led strip is built intelligent IC SK6812 in RGB+W 5050SMD LED, RGBW white color can be warm white 3000K, nature white 4000K, or pure white 6000K, It is upgraded version of RGB , can output 16 million static light color, but also can output a variety of dynamic chasing effect, The design of RGBW addressable led strip has 30leds per meter(30 independent pixels), 5 meters as a roll(16.4ft), IP30 not waterproof, or other waterproof levels are also customized. The SK6812 has richer color variation and color combination possibilities, 256 brightness display, 32 bit color display. Each pixel has its own color and brightness. You can control them individually and set them to any color or animation you want

Product Parameter

LED type	5050 RGBW 0.2W	Power	-W/M
Voltage	DC5V	IC Type	Ws2812 / sk6812
LED Density	3pcs/M	Certificate	CE ROHS
Lumen (m)		Warranty	3 YEARS
PCB Type	10 mm, 2oz, White PCB ,	Pack	5M/R or others
Cut unit	1 led / cut	IP Rank	IP30 IP65 IP67 IP68
Color	RGB

Waterproof grade and use environment

We offer different waterproof grades to choose from according to different using environment.
IP20:NON-Waterproof (indoor use, dry places)
IP65:Cover with PU / silicon glue (indoor use, Resistance to moisture and dust)
IP67:Cover with Silicone tube (indoor or outdoor use, Resistance to moisture and dust)
IP68:Cover with Silicon tube and put silicon glue inside tube, (outdoor use, it is ok to put into underwater or Rainy Places)

Connection method

Products attention

1, Do not long time light up when rolling on reel.
2, Do not overload lighting
3, Do not short circuit lighting
4, Do not plug to home 110V/220V Power
5, Do not put into water when it is not waterproof
