Sk6812 rgbw led strip
  • Sk6812 rgbw led stripSk6812 rgbw led strip
  • Sk6812 rgbw led stripSk6812 rgbw led strip

Sk6812 rgbw led strip

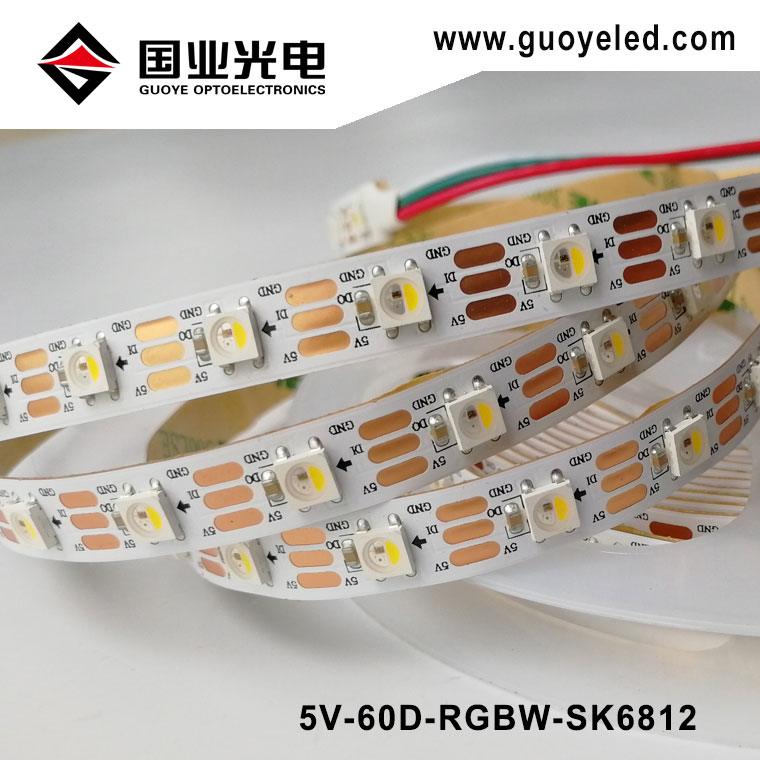

Guoye Optoelectronics is a supplier and manufacturer of individually addressing sk6812 rgbw led strip light. Programmable RGBW SK6812 is an upgraded version of WS2812B with built-in intelligent IC, This model provides 60 leds per meter and 5 meters per roll or other length options. Welcome to contact us for more information.

Model:GY-FS-5050-60D-SK6812-RGBW (5V)

Send Inquiry

Product Description


Product Introduction of sk6812 rgbw led strip

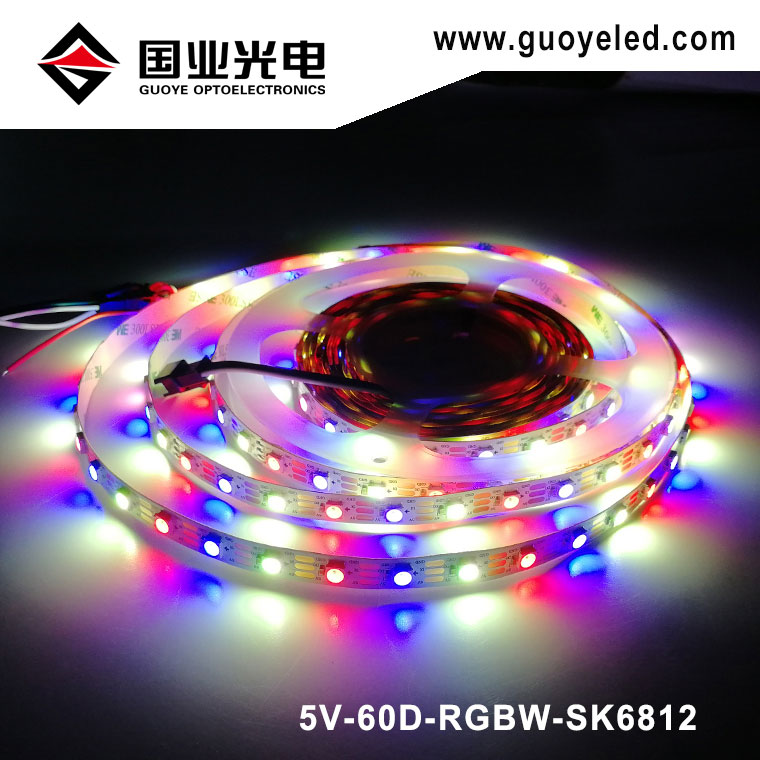

This model of sk6812 rgbw led strip light has different spacing of 30, 60 or 144 pixels per meter, the more pixels, the fuller effect. They come with 256 brightness display and 32 bit color display, each pixel has its own color and brightness. You can control them individually and set them to any color or animation you want, with the use of the controller can appear color screen up/water/rain/jump flash and other hundreds of lighting effects. This SK6812 RGBW is very suitable for family atmosphere, music bar, art stage, amusement park place lighting. It is based on colored red, blue, and green light, adding additional white light, it is a better pure white, or mixed in RGB colors to achieve lovely muted tones.



Product Parameter


LED type 5050 RGBW 0.2W Power -W/M
Voltage DC5V IC Type Ws2812b / sk6812
LED Density 60pcs/M Certificate CE ROHS
Lumen (m)   Warranty 3 YEARS
PCB Type 10 mm, 2oz, White PCB , Pack 5M/R or others
Cut unit 1 led / cut IP Rank IP30 IP65 IP67 IP68
Color RGBW




Waterproof grade and use environment


We offer different waterproof grades to choose from according to different using environment.
IP20:NON-Waterproof (indoor use, dry places)
IP65:Cover with PU / silicon glue (indoor use, Resistance to moisture and dust)
IP67:Cover with Silicone tube (indoor or outdoor use, Resistance to moisture and dust )
IP68:Cover with Silicon tube and put silicon glue inside tube, (outdoor use, it is ok to put into underwater or Rainy Places)



Connection method



Products attention

1,Do not long time light up when rolling on reel.
2,Do not overload lighting
3,Do not short circuit lighting
4,Do not plug to home 110V/220V Power
5,Do not put into water when it is not waterproof
